In this example we demonstrate how to compute frequency response for a model from both coils and the plasma mode computed in ThinCurr Python Example: Compute current potential from B-norm.
pip or other standard methods.To load the ThinCurr python module we need to tell python where to the module is located. This can be done either through the PYTHONPATH environment variable or within a script using sys.path.append() as below, where we look for the environement variable OFT_ROOTPATH to provide the path to where the OpenFUSIONToolkit is installed (/Applications/OFT for binaries on macOS).
We now create a OFT_env instance for execution using four threads and a ThinCurr instance that utilizes that execution environment. Once created, we setup the model from an existing HDF5 and XML mesh definition using setup_model().
We also initialize I/O for this model using setup_io() to enable output of plotting files for 3D visualization in VisIt, Paraview, or using pyvista below.
#----------------------------------------------
Open FUSION Toolkit Initialized
Development branch: tMaker_eq_split
Revision id: 6b5d2f29
Parallelization Info:
# of MPI tasks = 1
# of NUMA nodes = 1
# of OpenMP threads = 4
Integer Precisions = 4 8
Float Precisions = 4 8 16
Complex Precisions = 4 8
LA backend = native
#----------------------------------------------
Creating thin-wall model
No V(t) driver coils found
Loading I(t) driver coils
Masked 0 coils from sensors
Building holes
Loading region resistivity:
1 1.2570E-05
Setup complete:
# of points = 2394
# of edges = 7182
# of cells = 4788
# of holes = 2
# of closures = 0
# of Vcoils = 0
# of Icoils = 1
Before running the main calculations we will also define some sensors to measure the magnetic field. In ThinCurr all sensors measure the flux passing through a 3D path of points, but there are several helper classes to define common sensors (eg. Poloidal flux and Mirnovs). Here we define two Mirnov sensors to measure the Z-component of the magnetic field 5 cm on either side of the torus. save_sensors() is then used to save the resulting sensor for later use.
With the model setup, we can now compute the self-inductance and resistivity matrices. A numpy version of the self-inductance matrix will be stored at tw_plate.Lmat. By default the resistivity matrix is not moved to python as it is sparse and converting to dense representation would require an increase in memory. These matrices correspond to the \(\textrm{L}\) and \(\textrm{R}\) matrices for the physical system
\(\textrm{L} \frac{\partial I}{\partial t} + \textrm{R} I = V\)
Building element<->element self inductance matrix Time = 3s Building resistivity matrix
For the first case we will compute the frequency response on the model to current driven in the coil set specified in oft_in.xml at 1 kHz. To do this we first compute the coil to model mutual inductance matrix using tw_plate.compute_Mcoil(). Then we compute a purely real driver voltage by using the first row of this matrix (equivalent to multiplying by 1). Finally we use tw_plate.compute_freq_response() to compute the frequency response to this input.
Building coil<->element inductance matrices
Time = 0s
Starting frequency-domain run
Frequency [Hz] = 1.00000E+03
Starting complex GMRES solver
0 0.000000E+00 1.133720E+01
1 6.361443E+00
2 3.043293E+00
3 2.548610E+00
4 1.414304E+00
5 7.091233E-01
6 3.568591E-01
7 1.401280E-01
8 8.187974E-02
9 6.821360E-02
10 6.535723E-02
11 6.196449E-02
12 4.684791E-02
13 4.554808E-02
14 3.249582E-02
15 3.176619E-02
16 2.835578E-02
17 2.702281E-02
18 2.556674E-02
19 2.428017E-02
20 2.316560E-02
21 2.232681E-02
22 2.148619E-02
23 2.097776E-02
24 2.059959E-02
25 2.033502E-02
26 1.999214E-02
27 1.970446E-02
28 1.954535E-02
29 1.942117E-02
30 1.930082E-02
31 1.915314E-02
32 1.899206E-02
33 1.889307E-02
34 1.879785E-02
35 1.871871E-02
36 1.860217E-02
37 1.837916E-02
38 1.818528E-02
39 1.797928E-02
40 1.781565E-02
41 1.766273E-02
42 1.751544E-02
43 1.727815E-02
44 1.694255E-02
45 1.652836E-02
46 1.561365E-02
47 1.444366E-02
48 1.322331E-02
49 1.144057E-02
50 9.537696E-03
51 7.858352E-03
52 6.457814E-03
53 5.338199E-03
54 4.295388E-03
55 3.182877E-03
56 2.733069E-03
57 2.341214E-03
58 1.861867E-03
59 1.435584E-03
60 2.097016E-01 1.077125E-03 5.136466E-03
61 1.063746E-03
62 9.427853E-04
63 8.505541E-04
64 8.353258E-04
65 8.047516E-04
66 7.724182E-04
67 7.150750E-04
68 6.694745E-04
69 5.729630E-04
70 4.387715E-04
71 4.212803E-04
72 3.855457E-04
73 3.713219E-04
74 3.494009E-04
75 3.400814E-04
76 3.086956E-04
77 2.973514E-04
78 2.749248E-04
79 2.687598E-04
80 2.607900E-04
81 2.575348E-04
82 2.533340E-04
83 2.501205E-04
84 2.479021E-04
85 2.455230E-04
86 2.427133E-04
87 2.405284E-04
88 2.390289E-04
89 2.375186E-04
90 2.359244E-04
91 2.343140E-04
92 2.334188E-04
93 2.325685E-04
94 2.314972E-04
95 2.302529E-04
96 2.291000E-04
97 2.271692E-04
98 2.233233E-04
99 2.184365E-04
100 2.130894E-04
101 2.073864E-04
102 2.030197E-04
103 1.966233E-04
104 1.876042E-04
105 1.794986E-04
106 1.719932E-04
107 1.559747E-04
108 1.285299E-04
109 1.049224E-04
110 9.157738E-05
111 8.206501E-05
112 7.053876E-05
113 5.625970E-05
114 4.082929E-05
115 2.925797E-05
116 2.446758E-05
117 2.099124E-05
118 1.916679E-05
119 1.812661E-05
120 2.105014E-01 1.787020E-05 8.489348E-05
121 1.770476E-05
122 1.730159E-05
123 1.729363E-05
124 1.728695E-05
125 1.713555E-05
126 1.709848E-05
127 1.705771E-05
128 1.696257E-05
129 1.696124E-05
130 1.690325E-05
131 1.682883E-05
132 1.680193E-05
133 1.642649E-05
134 1.626680E-05
135 1.600319E-05
136 1.593859E-05
137 1.565963E-05
138 1.543334E-05
139 1.497474E-05
140 1.408529E-05
141 1.306096E-05
142 1.194754E-05
143 1.089594E-05
144 9.957490E-06
145 9.174953E-06
146 8.317284E-06
147 7.236062E-06
148 6.233711E-06
149 5.392590E-06
150 4.718667E-06
151 4.055740E-06
152 3.685105E-06
153 3.376327E-06
154 3.263667E-06
155 3.102994E-06
156 2.888878E-06
157 2.591837E-06
158 2.212184E-06
159 1.897751E-06
160 1.626459E-06
161 1.379171E-06
162 1.165506E-06
163 1.036990E-06
164 9.623257E-07
165 9.173395E-07
166 8.906975E-07
167 8.739453E-07
168 8.622998E-07
169 8.550025E-07
170 8.470847E-07
171 8.421507E-07
172 8.345323E-07
173 8.262945E-07
174 8.131854E-07
175 8.045242E-07
176 7.964064E-07
177 7.861783E-07
178 7.800316E-07
179 7.730920E-07
180 2.104196E-01 7.443755E-07 3.537576E-06
181 7.429977E-07
182 7.344187E-07
183 7.231447E-07
184 7.198199E-07
185 7.146831E-07
186 6.936397E-07
187 6.831498E-07
188 6.754092E-07
189 6.672311E-07
190 6.621124E-07
191 6.565343E-07
192 6.480084E-07
193 6.414702E-07
194 6.367620E-07
195 6.298508E-07
196 6.264528E-07
197 6.233235E-07
198 6.201443E-07
199 6.172521E-07
200 6.126088E-07
201 6.085881E-07
202 6.049502E-07
203 5.994509E-07
204 5.936265E-07
205 5.819052E-07
206 5.677349E-07
207 5.470759E-07
208 5.188072E-07
209 4.763159E-07
210 4.111860E-07
211 3.470847E-07
212 2.907945E-07
213 2.629491E-07
214 2.401745E-07
215 2.232993E-07
216 1.843202E-07
217 1.595641E-07
218 1.381624E-07
219 1.161613E-07
220 7.696194E-08
221 5.301292E-08
222 3.165613E-08
223 1.976375E-08
224 1.404508E-08
225 1.089556E-08
226 8.432231E-09
227 6.929075E-09
228 5.766957E-09
229 4.958958E-09
230 4.456666E-09
231 4.054642E-09
232 3.678141E-09
233 3.392003E-09
234 3.137053E-09
235 2.851272E-09
236 2.507529E-09
237 2.115919E-09
238 1.782318E-09
239 1.639938E-09
240 2.104221E-01 1.549768E-09 7.365041E-09
Time = 7.80307E-01

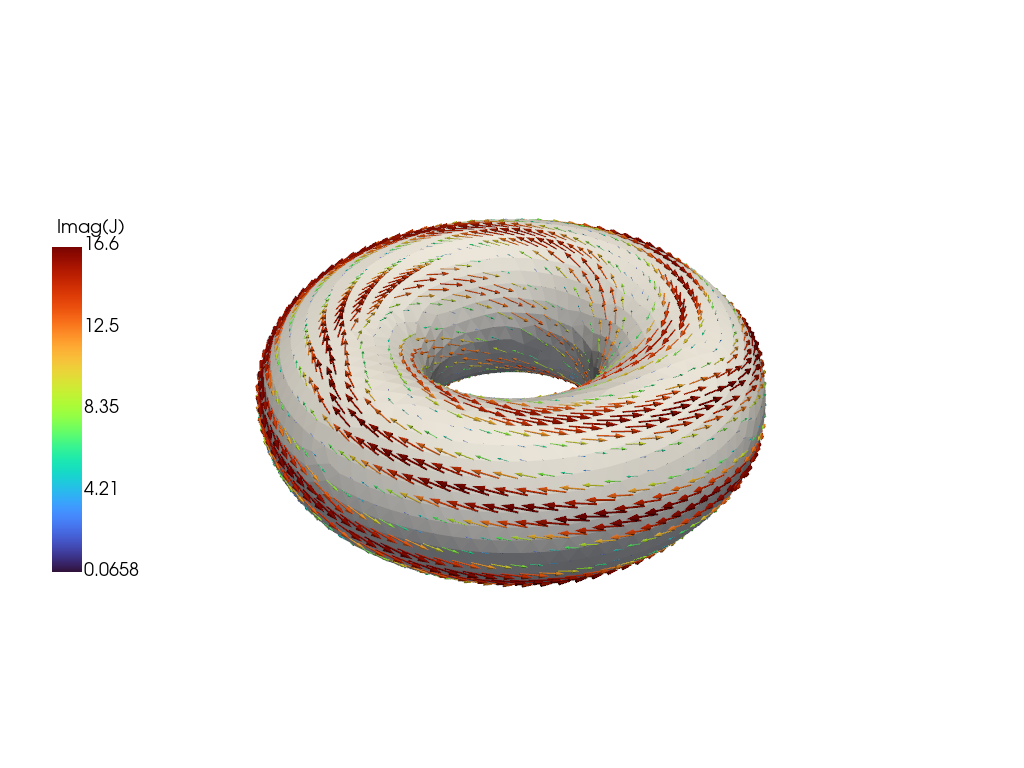

The resulting currents are saved for plotting using tw_plate.save_current(). Here we save the real (Jr) and Imaginary (Ji) components of the response for visualization. Once all fields have been saved for plotting tw_plate.build_XDMF() to generate the XDMF descriptor files for plotting with VisIt of Paraview.
