cylinv_interp Type Reference

Detailed Description

Abstract interpolation class for inverse mappings.

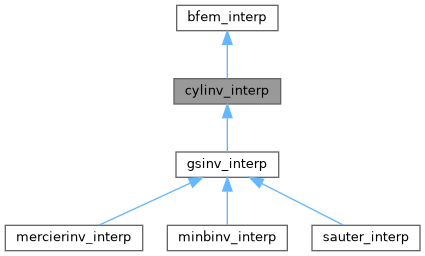

Inheritance diagram for cylinv_interp:

Public Member Functions
procedure	delete (self)
	Delete reconstruction object.
procedure(oft_bfem_interp), deferred	interp (self, cell, f, gop, val)
	Reconstruct field.

Public Attributes
integer(i4)	dim = 0
	Dimension of field.
real(r8)	eps = 1.d-8
	Epsilon for 1/rho singularity.
class(oft_bmesh), pointer	mesh => NULL()
	Mesh for interpolation.
class(bfem_interp), pointer	parent => NULL()
	Parent interpolator.
real(r8)	rho = 0.d0
	Radial position.
real(r8)	t = 0.d0
	Poloidal angle.

Member Function/Subroutine Documentation

delete()

procedure delete ( class(bfem_interp), intent(inout)  self )

inherited

Delete reconstruction object.

interp()

procedure(oft_bfem_interp), deferred interp ( class(bfem_interp), intent(inout)  self, integer(i4), intent(in)  cell, real(r8), dimension(:), intent(in)  f, real(r8), dimension(3,3), intent(in)  gop, real(r8), dimension(:), intent(out)  val  )

pure virtualinherited

Reconstruct field.

Member Data Documentation

dim

integer(i4) dim = 0

inherited

Dimension of field.

eps

real(r8) eps = 1.d-8

Epsilon for 1/rho singularity.

mesh

class(oft_bmesh), pointer mesh => NULL()

inherited

Mesh for interpolation.

parent

class(bfem_interp), pointer parent => NULL()

inherited

Parent interpolator.

rho

real(r8) rho = 0.d0

Radial position.

t

real(r8) t = 0.d0

Poloidal angle.

---

The documentation for this type was generated from the following file:

• /home/runner/work/OpenFUSIONToolkit/OpenFUSIONToolkit/src/physics/tracing_2d.F90
