oft_solver Type Reference

Detailed Description

Base class for OFT solvers.

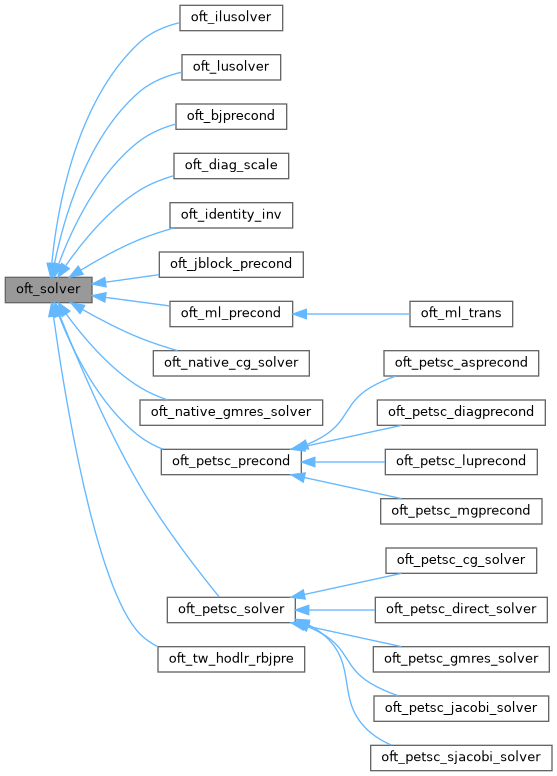

Inheritance diagram for oft_solver:

Public Member Functions
procedure(solver_apply), deferred	apply (self, u, g)
	Solve system.
procedure	check_thread (self)
	Check thread safety.
procedure(solver_delete), deferred	delete (self)
	Clean-up internal storage.
procedure	setup_from_xml (self, solver_node, level)
	Setup solver from XML node.
procedure	update (self, new_pattern)
	Update solver with new settings/operators.
procedure	view (self)
	Print solver information.

Public Attributes
class(oft_matrix), pointer	a => NULL()
	Matrix to be inverted.
real(r8)	atol = 1.d-14
	Absolute convergence tolerance \( |res| < atol \).
class(oft_solver_bc), pointer	bc => NULL()
	Boundary condition.
integer(i4)	cits = 0
	Number of iteractions to convergence.
logical	full_residual = .TRUE.
	Output true residual on exit.
logical	initialized = .FALSE.
	Solver has been constructed.
integer(i4)	itplot =10
	Output frequency for iterative solvers when pm=.TRUE.
integer(i4)	its = -1
	Maximum iteration count.
logical	pm = .FALSE.
	Performance monitor override.
class(oft_solver), pointer	pre => NULL()
	Preconditioner.
real(r8)	rtol = 1.d-14
	Relative convergence tolerance \( |res|/|res_0| < rtol \).

Member Function/Subroutine Documentation

apply()

procedure(solver_apply), deferred apply ( class(oft_solver), intent(inout)  self, class(oft_vector), intent(inout)  u, class(oft_vector), intent(inout)  g  )

pure virtual

Solve system.

Parameters

[in,out]	self	Solver object
[in,out]	u	Guess/Solution field
[in,out]	g	RHS/Residual field

check_thread()

procedure check_thread

(

class(oft_solver), intent(inout)

self

)

Check thread safety.

Parameters

[in,out]

self

Solver object

delete()

procedure(solver_delete), deferred delete ( class(oft_solver), intent(inout)  self )

pure virtual

Clean-up internal storage.

Parameters

[in,out]

self

Solver object

setup_from_xml()

procedure setup_from_xml	(	class(oft_solver), intent(inout)	self,
		type(xml_node), intent(in), pointer	solver_node,
		integer(i4), intent(in), optional	level
	)

Setup solver from XML node.

Note

This subroutine is a dummy routine used to specify the interface of the member function and catch errors in uninitialized solvers

Parameters

[in,out]	self	Solver object
[in]	solver_node	XML element containing solver definition
[in]	level	Level in MG hierarchy (optional)

update()

procedure update	(	class(oft_solver), intent(inout)	self,
		logical, intent(in), optional	new_pattern
	)

Update solver with new settings/operators.

Note

This subroutine is a dummy routine used to specify the interface of the member function and catch errors in uninitialized solvers

Parameters

[in,out]	self	Solver object
[in]	new_pattern	Update matrix non-zero pattern? (optional)

view()

procedure view

(

class(oft_solver), intent(inout)

self

)

Print solver information.

Note

This subroutine is a dummy routine used to specify the interface of the member function and catch errors in uninitialized solvers

Parameters

[in,out]

self

Solver object

Member Data Documentation

a

class(oft_matrix), pointer a => NULL()

Matrix to be inverted.

atol

real(r8) atol = 1.d-14

Absolute convergence tolerance \( |res| < atol \).

bc

class(oft_solver_bc), pointer bc => NULL()

Boundary condition.

cits

integer(i4) cits = 0

Number of iteractions to convergence.

full_residual

logical full_residual = .TRUE.

Output true residual on exit.

initialized

logical initialized = .FALSE.

Solver has been constructed.

itplot

integer(i4) itplot =10

Output frequency for iterative solvers when pm=.TRUE.

its

integer(i4) its = -1

Maximum iteration count.

pm

logical pm = .FALSE.

Performance monitor override.

pre

class(oft_solver), pointer pre => NULL()

Preconditioner.

rtol

real(r8) rtol = 1.d-14

Relative convergence tolerance \( |res|/|res_0| < rtol \).

---

The documentation for this type was generated from the following file:

• /home/runner/work/OpenFUSIONToolkit/OpenFUSIONToolkit/src/lin_alg/solver_base.F90
