fem_interp Type Reference

Detailed Description

Base class for interpolation of a FE field.

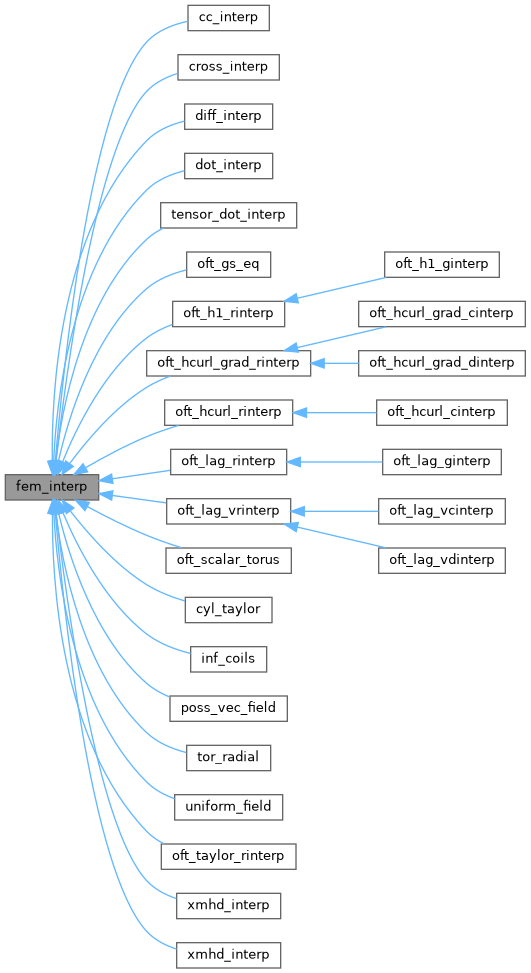

Inheritance diagram for fem_interp:

Public Member Functions
procedure	delete (self)
	Delete reconstruction object.
procedure(oft_fem_interp), deferred	interp (self, cell, f, gop, val)
	Reconstruct field.

Public Attributes
integer(i4)	dim = 0
	Dimension of field.
class(oft_mesh), pointer	mesh => NULL()
	Mesh for interpolation.
class(fem_interp), pointer	parent => NULL()
	Parent interpolator.

Member Function/Subroutine Documentation

delete()

procedure delete

(

class(fem_interp), intent(inout)

self

)

Delete reconstruction object.

interp()

procedure(oft_fem_interp), deferred interp ( class(fem_interp), intent(inout)  self, integer(i4), intent(in)  cell, real(r8), dimension(:), intent(in)  f, real(r8), dimension(3,4), intent(in)  gop, real(r8), dimension(:), intent(out)  val  )

pure virtual

Reconstruct field.

Member Data Documentation

dim

integer(i4) dim = 0

Dimension of field.

mesh

class(oft_mesh), pointer mesh => NULL()

Mesh for interpolation.

parent

class(fem_interp), pointer parent => NULL()

Parent interpolator.

---

The documentation for this type was generated from the following file:

• /home/runner/work/OpenFUSIONToolkit/OpenFUSIONToolkit/src/fem/fem_utils.F90
